Diehl & Phillips, P.A. Consulting Engineers Gallery
Just a small sample of some of our latest design projects.

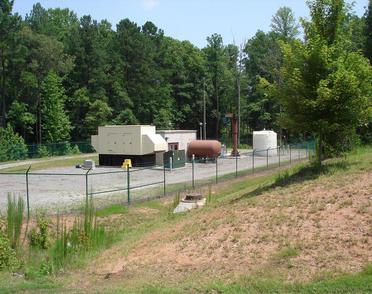

Emerald Isle - Pebble Beach Waste Water Treatment Plant

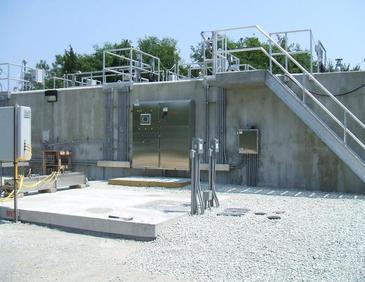

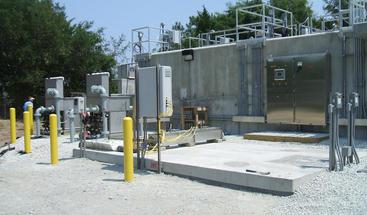

Holly Springs - North Carolina 12 Oaks Pump Station
Design Drawing (click to view)
Design Drawing (click to view)

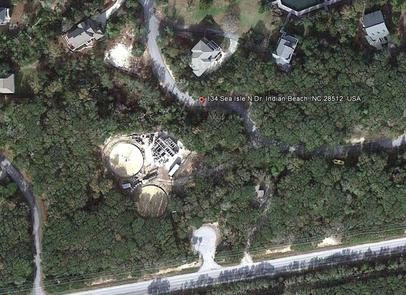

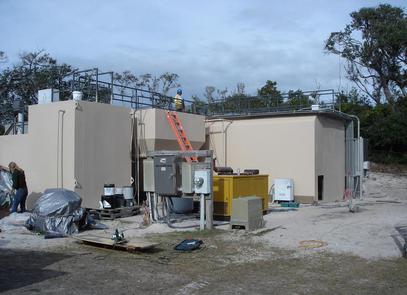

Sea Isle Plantation North - Modifications to WWTP Carteret County North Carolina
Site Data
  • The station was built in two phases. The first phase would be a duplex pump station with one pump producing a minimum of 1,250 gpm, the minimum flow required to maintain a 2 ft/sec. flushing velocity in the 16 inch forcemain.

  • Phase 2 of the pump station will consists of the construction of a mirror image of the wet well and valve vault constructed in Phase 1, installation of the additional starters, and modifications to the station control panel. The Phase 2 pumps will be either identical to the Phase 1 pumps (if they are Flygt pumps), or the same model with a slightly larger impeller installed in all four pumps (if they are ABS pumps).

  • After Phase 2 was constructed, three of the four installed pumps will deliver the required design flow rate of 2,320 gpm. The generator and transfer switch to be installed in Phase 1 are to be sized to start three pumps sequentially.

Site Data
  • ​Influent bar rack for coarse solids screening
  • Flow splitter box
  • Mechanically mixed Flow Equalization basin with 22,000 gallons of storage (40% of rated plant flow)
  • Flow Equalization pumping and controls to maintain constant flow rate into plant
  • Aerated sludge holding tanks with a total of 25,500 gallons of storage (46% of rated plant flow)
  • Aerated Oxic zones with a total volume of 62,500 gallons (27.3 hours hydraulic detention at rated plant flow)
  • Mechanically mixed Anoxic zones with a total volume of 19,000 gallons (8.3 hours hydraulic detention at rated plant flow)
  • Clarifiers (227 gpd/sf surface overflow rate)
  • Combined mixed liquor recycle and return sludge pump station
  • Dual Cell Tertiary denitrification filter (1.0 gpm per square foot rate), with capabilities to feed a chemical similar to methanol
  • Ultraviolet disinfection as required to meet the permit limits for fecal coliform
  • Effluent pumping to existing LPP fields
  • Chemical storage facilities for pH adjusting chemical (Sodium Hydroxide), to replace the alkalinity consumed in the nitrification process
Design Drawing (click to view)
